บ้าน / สินค้า / เครื่องประมวลผลลูกกลิ้ง CNC / XK8460H เครื่องกัดร่องเสี้ยวม้วน CNC สำหรับงานหนัก
เครื่องประมวลผลลูกกลิ้ง CNC

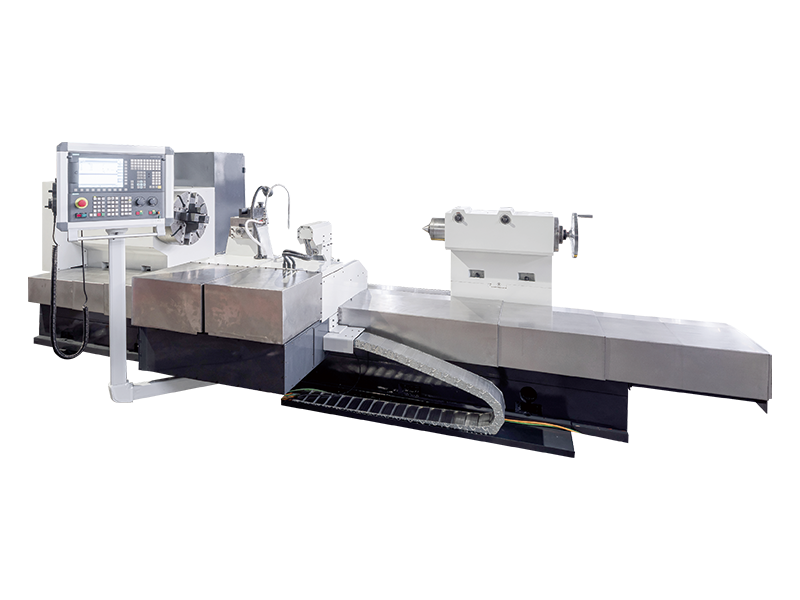

XK8460H เครื่องกัดร่องเสี้ยวม้วน CNC สำหรับงานหนัก

Contact Now Download
  • Parameter
  • Description
พารามิเตอร์หลัก
สูงสุด เส้นผ่านศูนย์กลางของม้วน Φ600มม
สูงสุด ความยาวของม้วน 100--2500มม
ข้อมูลเฉพาะของ ร่องเสี้ยว Φ6-Φ60มม
สูงสุด น้ำหนักระหว่างแคลมป์หลัก 6,000กก
ขนาดของหัวจับสำหรับแกนหมุนของ headstock Φ500มม. สี่กรงเล็บ
พารามิเตอร์ของไดรฟ์หลัก
ความเร็วแกนหลักของหัวกัดแบบหมุน ดีเค85
Fly-cutter mi1ling หัวแกนหลักสูงสุด ความเร็ว 600r/นาที
ข้อมูลจำเพาะของมอเตอร์
กำลังมอเตอร์หลักของหัวกัดหมุน 2.2KW
ความเร็วในการหมุนของชิ้นงาน 50--600°/มม
ชิ้นงานหมุนด้วยความเร็วป้อนที่รวดเร็ว 4000°/มม
ความเร็วสวิงของหัวกัดแบบหมุน 40--600°/มม
มอเตอร์ปั๊มทำความเย็น 120W

ระบบควบคุม

ซินูเมริก 828D

เซอร์โวมอเตอร์

แกน X (มีดบิน)  4.5Kw

แกน Y (ชิ้นงาน) 4.5Kw

แกน Z (หัวสวิง)   2.1Kw

แกน U (ฟีด)   2.3Kw

แกน W (ฟีด)  2.3Kw

แกน A (การเคลื่อนที่ตามยาว)  2.3Kw

น้ำหนักเตียงแล่นเรือ

7ต

ขนาดเครื่อง (ยxกxส)

6200x2520x2000

กำลังเครื่องทั้งหมด

20KVA
