บ้าน / สินค้า / เครื่องเจียรซีเอ็นซี / SK001-5 เครื่องเจียรแหวนลูกกลิ้ง CNC อัจฉริยะที่มีความแข็งแกร่งสูง
เครื่องเจียรซีเอ็นซี

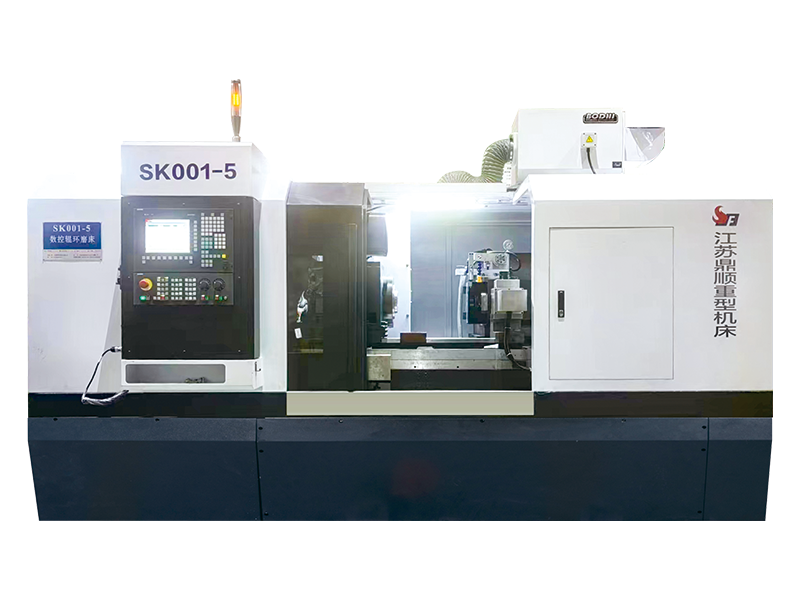

SK001-5 เครื่องเจียรแหวนลูกกลิ้ง CNC อัจฉริยะที่มีความแข็งแกร่งสูง

Contact Now Download
  • Parameter
  • Description
ขอบเขตของงาน
เส้นผ่านศูนย์กลางการเจียร (มาตรฐาน) Ф100~ Ф400มม
เส้นผ่านศูนย์กลางการบด (การออกแบบพิเศษของ headstock) Ф50~ Ф400มม
ความยาวการเจียรสูงสุด 400มม
ความสูงของศูนย์กลาง 250มม
น้ำหนักสูงสุดของชิ้นงานที่กลึง 350 กก
ผู้ให้บริการล้อเจียร
ขนาดล้อเจียร เส้นผ่านศูนย์กลางภายนอกสูงสุด Ф250มม
เส้นผ่านศูนย์กลางภายนอกขั้นต่ำ Ф200มม
ความหนาสูงสุด 65มม
ความเร็วแกนหมุน 1910r/นาที
จังหวะสูงสุด 300มม
เส้นผ่านศูนย์กลางของสกรู Φ63×10
ความเร็วในการเคลื่อนที่ที่รวดเร็ว 3 ม./นาที
โต๊ะทำงาน
จังหวะสูงสุด 440ม
เส้นผ่านศูนย์กลางของสกรู Φ63×10
ความเร็วในการเคลื่อนที่ที่รวดเร็ว 3 ม./นาที
มอเตอร์หลักของเฮดเฟรม 5.5กิโลวัตต์
ความเร็วแกนของเฮดเฟรม 0~ 200 รอบต่อนาที/นาที
ความแม่นยำในการกลึงแหวนลูกกลิ้ง
ความเบี่ยงเบนของทรงกระบอกของวงกลมรอบนอก 0.005มม
ความอดทนของเส้นผ่านศูนย์กลางวงกลมด้านนอก ±0.005มม
ความทนทานต่อเส้นผ่านศูนย์กลางร่อง ±0.01มม
ความทนทานต่อความลึกของร่อง ±0.005มม
ความหยาบผิวเจียร Ra0.4μm
โคแอกเชียลของพื้นผิวเจียรถึงรูตรงกลาง

0.005มม

ความคลาดเคลื่อนของตำแหน่งจากศูนย์กลางร่องม้วนถึงหน้าปลายวงแหวน

0.01มม

ความแม่นยำในการตรวจจับอัตโนมัติ

ทิศทางแกน: 0 ~ 0.003 มม

รัศมี:0~0.005มม

โปรไฟล์เครื่อง
ขนาดโดยรวมของเครื่อง (ย × กว้าง × สูง)
น้ำหนักเครื่อง ประมาณ 8t
